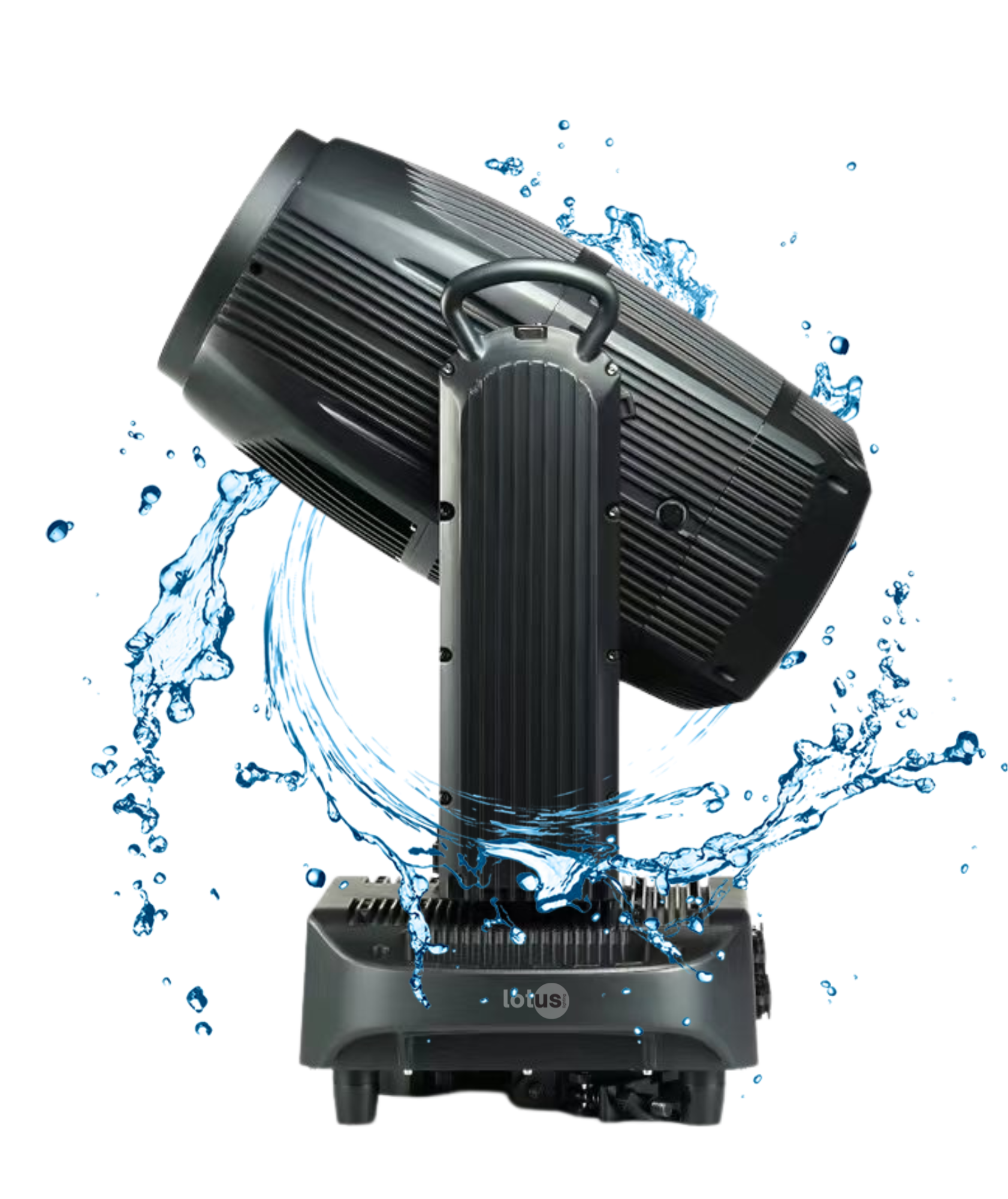

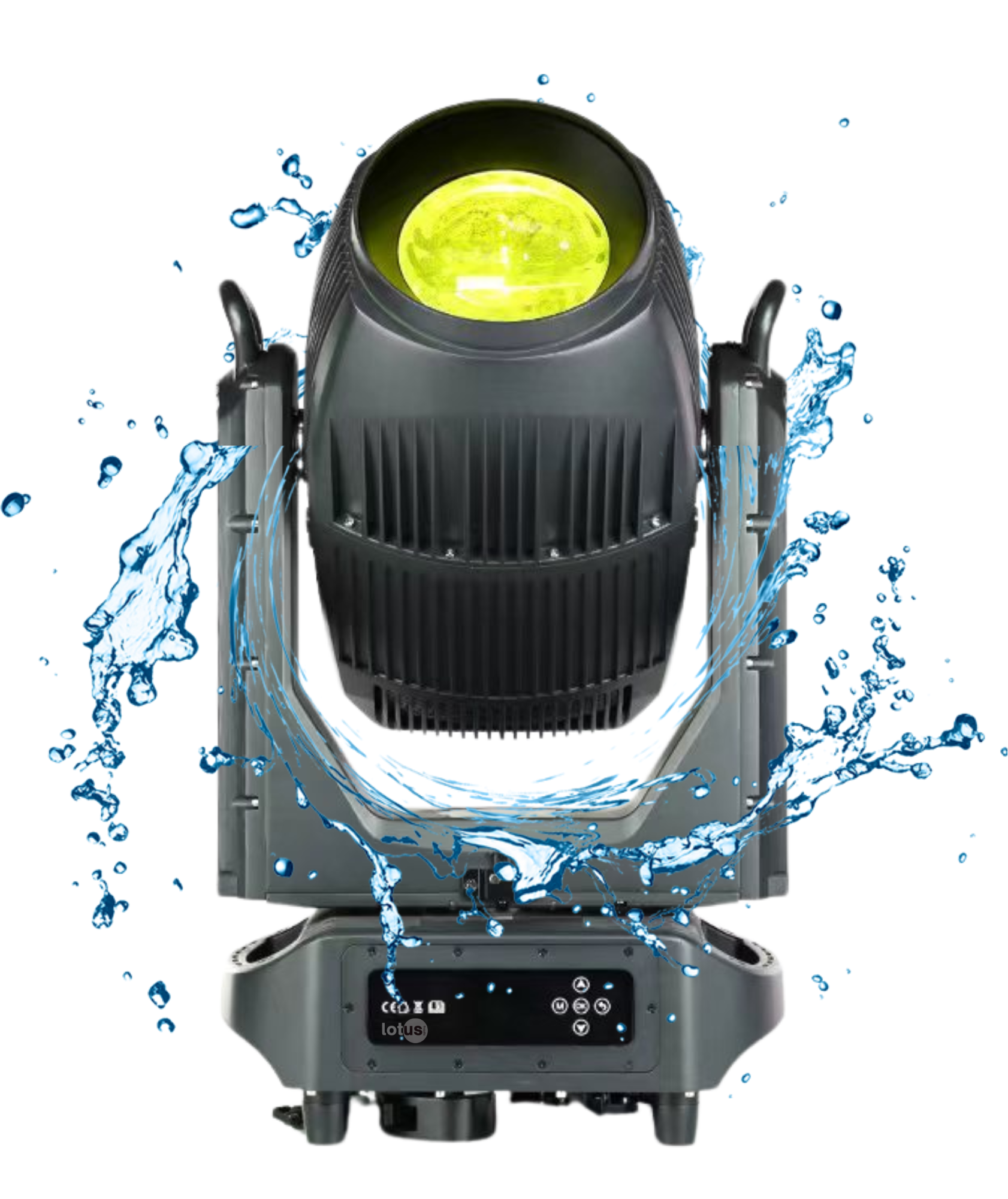

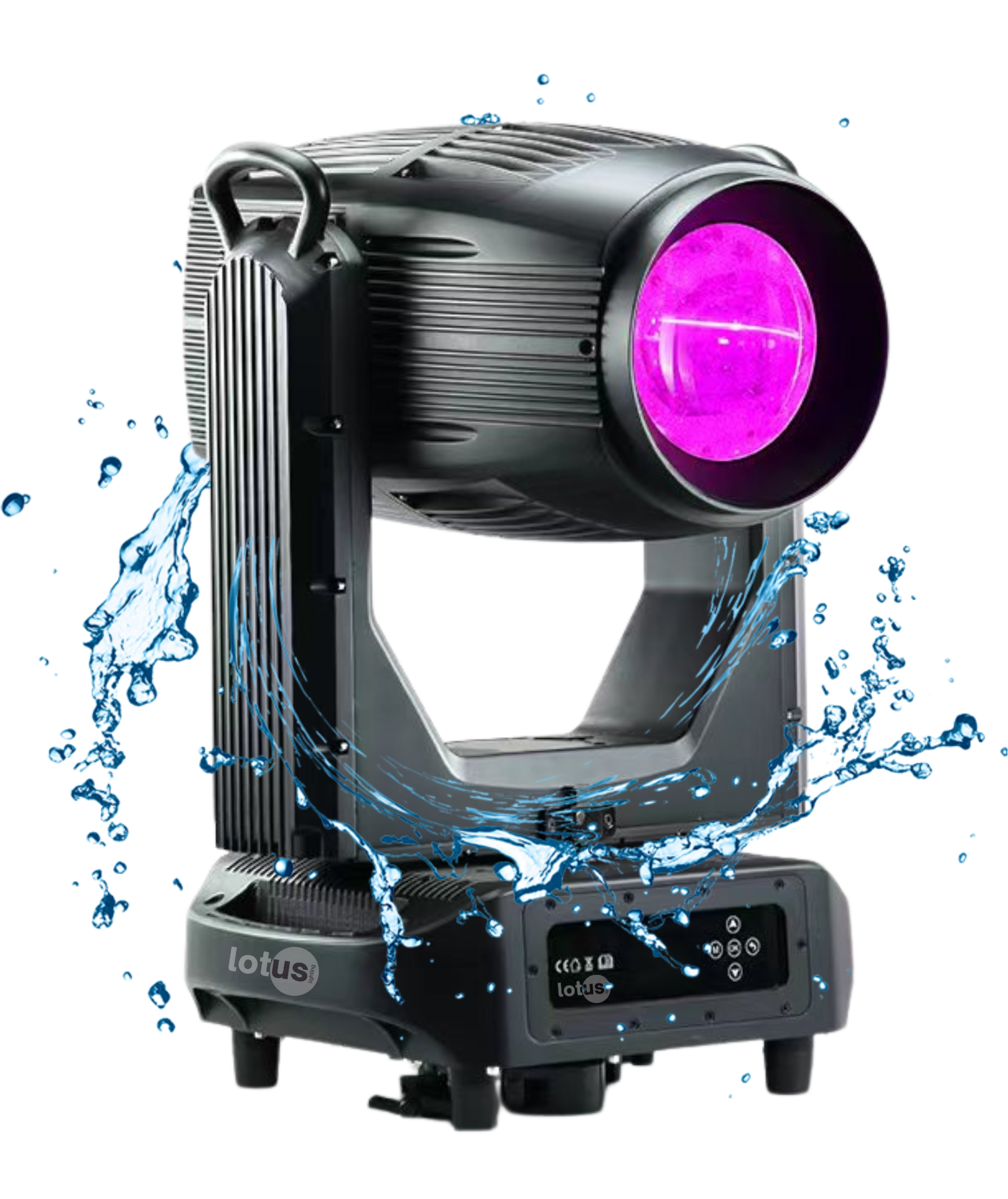

Elisium 600-Aqua

WPBakery Elementor

550W IP65 Outdoor Hybrid

The Elisium 600 Aqua is an IP65 waterproof Hybrid moving head that stands out as a powerful beam fixture and excellent spotlight, offering a high lumen output and superior evenness compared to other lights in the same category.

The Elisium 600 Aqua’s optical system moves linearly from 2.5° to 45° and is equipped with a new 550W LED, providing an output equivalent to higher power-consuming units, but in a smaller, lighter, and faster body.

The extensive feature set of the Elisium 600 Aqua includes aerial effects with a thick and parallel beam, crisp projection textures, and pattern effects, along with linear CMY&CTO, three color wheels, an animation wheel, two overlapping prisms, frost, and two gobo wheels.

TECHNICAL SPECIFICATION

Light Source

•Lamp: Multichip 550W LED

•Color Temperature: 7800K±200K

•Source life expectancy: 30.000 hours

Optics

•Beam: 2,5°~ 6°

•Spot: 5°~ 45°

•Wash: 17°~ 45°

•Focus: Motorized Focus & Motorized Zoom

Color System

•Colour mixing: 13 Color

•Colour wheel: CTO & CMY + CMY Macro

Body

•Material: Aluminum

•Body Color: Black

•Transport: Two side handles

•Device Locking PAN and TILT: Yes

Head Movement

•Pan: 540º

•Tilt: 270º

•8 Bit / 16 Bit

Packing

•Professional 90 Degree Clamp: Optional

•Power Cable: TrueCon with Cable

•Signal: Male / Female Connector ‘’3 Pin or 5 Pin’’

Control

•Protocols: RDM DMX512 Built-in Program, DMX, Master Slave

•Short Mode: 29 Channels

•Standart Mode: 29 Channels

•Display: LCD Display

•Dimmer: 0-100% Electronic Dimmer

•Strobe: Variable speeds (1-20 F.P.S at maximum)

Dynamic Effects

•Fixed Gobo: 12 fixed gobos + open & 7 x Rotating Gobo + Open

•Effect: High speed shake effect

•Strobe Effect: Mechanical shutter and adjustable speed strobe effect

•Frost: Motorized

•Dimmer: Mechanical dimmer

PRISM

•Prism: 2 Prism

Physical

•IP Rating: IP 65

•Net Weight: 35kg

•Dimension: 390mm x 310mm x 715mm

•Cooling: Forced Air With Fan

•Clamp: Omega Brackets 90 Degree Professional Clamp (Optional)

•Connectors: TrueCon + Signal (3 Pin or 5 Pin)

Electrical

•Main Power Supply: 100V-240V 50/60Hz

•Input Power: 650W@230V

•Power Factor: PF>0.90

MAIN FEATURES

Elisium 600 Aqua – Premium Outdoor Moving Head Spot/Wash/Beam

Unmatched Illumination & Longevity

•Light Source: 550W Multichip LED

•Color Temperature: 7800K ± 200K

•Lifespan: 30,000 hours

Versatile Optics for Precision Lighting

•Beam Angle: 2.5° – 6°

•Spot Angle: 5° – 45°

•Wash Angle: 17° – 45°

•Focus: Motorized Zoom & Focus

Advanced Color System

•Color Mixing: 13 colors, including CTO & CMY + CMY macros

•Color Wheel: Seamless transitions with a wide range of vibrant tones

Robust & Flexible Head Movement

•Pan: 540°

•Tilt: 270°

•Control Modes: 8-bit / 16-bit precision

Dynamic Effects for Maximum Impact

•Gobos:

•12 Fixed Gobos + Open

•7 Rotating Gobos + Open

•Effects:

•High-speed shake effect

•Mechanical strobe with adjustable speed (1-20 FPS)

•Motorized frost for soft-edge effects

•Prism: Dual rotating prisms for layered and multidimensional effects

•Dimmer: 0-100% electronic and mechanical dimming

Rugged Design for All Environments

•Material: Durable aluminum housing

•IP Rating: IP65 for reliable outdoor performance

•Weight: 35 kg

•Dimensions: 390mm x 310mm x 715mm

Seamless Connectivity & Control

•Protocols: RDM, DMX512, Master-Slave, Built-in programs

•Signal Connectors: 3-pin or 5-pin XLR, TrueCon power connectors

•Channel Modes: 29-channel standard and short modes

•Display: Intuitive LCD interface

Powerful & Energy-Efficient

•Input Power: 650W @ 230V

•Power Factor: > 0.90

•Cooling System: Forced air with fan for optimal thermal management

Optional Accessories for Customization

•Clamp: Omega Brackets (90° clamp available)

•Power Cable: High-quality TrueCon cables

The Elisium 600 Aqua is the ultimate choice for professional lighting applications, delivering breathtaking visuals and dependable performance in any setting, from intimate venues to large-scale outdoor events.

Application Areas

The Elisium 600 Aqua, with its cutting-edge LED technology and exceptional versatility, is the ultimate solution for a wide range of professional lighting applications:

•Concerts: Provides powerful illumination and dynamic effects, creating an electrifying stage atmosphere that amplifies every performance.

•Outdoor Events: With its IP65 rating, the Chameleon 3000T guarantees reliable operation in outdoor environments, ensuring consistent performance in any weather condition.

•Theaters and Performance Venues: Offers precise color mixing and pixel-mappable zones, enhancing stage designs with vibrant and captivating visuals that bring productions to life.

•Festivals and Large-Scale Events: Perfect for weddings, conferences, and festivals, it delivers breathtaking lighting effects that leave a lasting impact on audiences.

The Elisium 600 Aqua is designed to excel in any setting, combining advanced technology, robust construction, and stunning visual effects to elevate every occasion to new heights.

VERSIONS

REV 2023.09

CERTIFICATE

Certifications / Approvals : EMC , LVD , CE
