Elisium 700 – Profile Spot

WPBakery Elementor

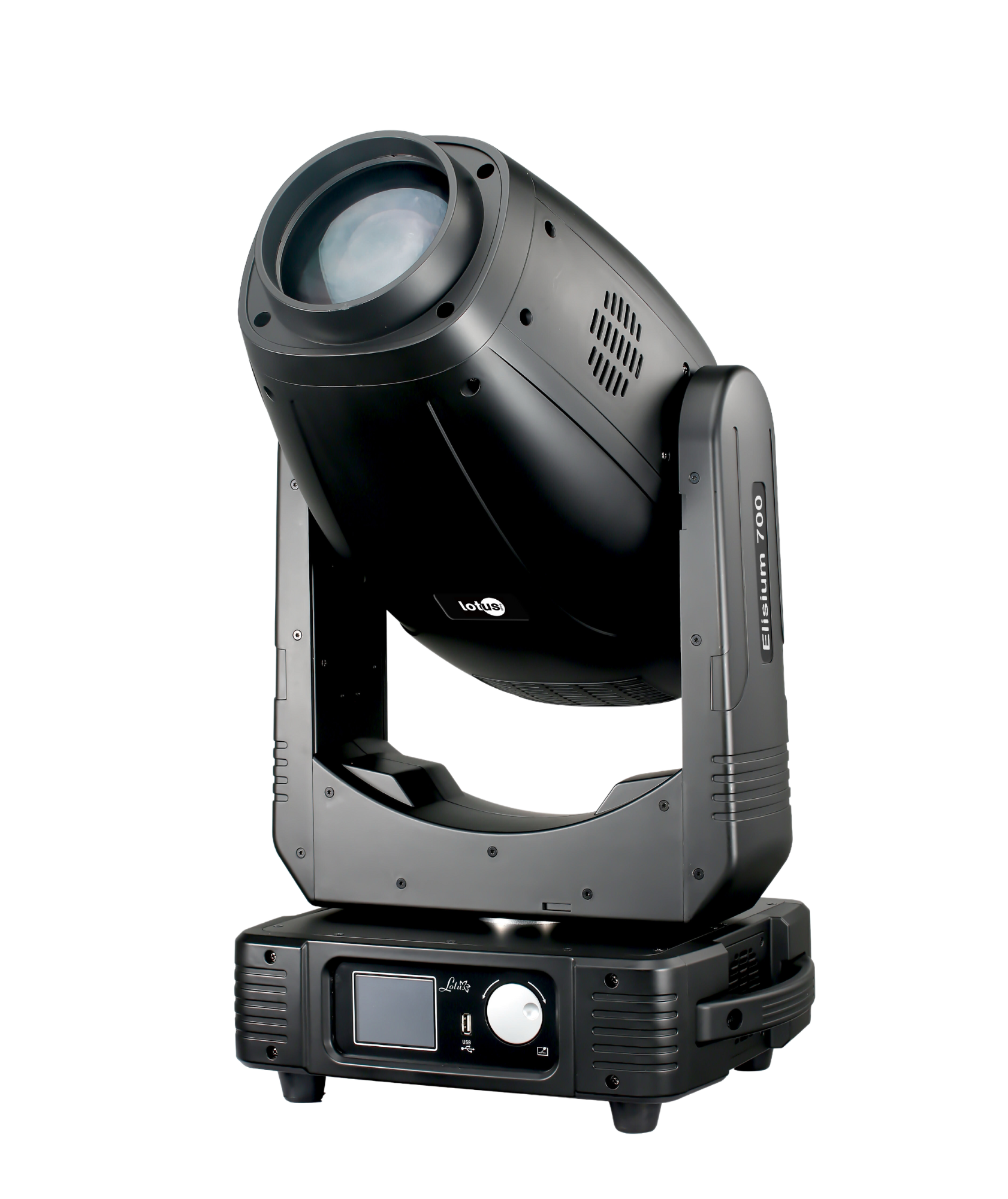

600W Led Profile Movinghead Spot Stage Lighting

 The Elisium 700 is a Profile moving head that stands out as a massive lumen output, Profile feature and excellent spotlight compared to other lights in the same category.

The Elisium 700 optical system moves linearly from 5° to 55° and is equipped with a brand new 600W Osram Led with equivalent output of higher power consuming units but in a smaller, lighter and faster body.

Elisium 700’s comprehensive feature set includes functions such as Profile, linear CMY and CTO, three color wheels, an animation wheel, two overlapping prisms, frost and two gobos, and thick and parallel beam aerial effects, and clear projection textures and pattern effects. wheels.

TECHNICAL SPECIFICATION

Light Source

Lamp : Osram 600W Led

7Color Temperature : 2800K-5600K

Source life expectancy : 30.000 hours

Optics

Lens Diameter : 180mm

Spot : 5°～ 55°

Focus : Motorized Focus

Zoom : Motorized Zoom

Color System

Colour mixing: CMY colour system on 7 Color

Colour wheel: CMY + CTO ‘’ 2800K-5600K ‘’

Body

Material : High temperature and anti-UV ABS and aluminum

Body Color : Black

Transport : Two side handles

Device Locking PAN and TILT : Yes

Head Movement

Pan : 540º

Tilt : 270º

Pan/Tilt Resolution:

Packing

Professional 90 Degree Clamp : Including

Power Cable : Powercon with Cable

Signal : Male / Female Connector ‘’ 3 pin & 5 Pin

Control

Protocols : DMX512 ‘’ Built-in Program, DMX, Master Slave ‘’

Short Mode : 37 Channels

Standart Mode : 41 Channels

Dimmer / Strobe

Dimmer : 0-100% Electronic Dimmer

Strobe at variable speeds (15 F.P.S at maximum)

Dynamic Effects

Profile Spot : Yes ‘’ 4 Plates. After cut, the pattern can rotation 180°

Fixed Gobo : 8 fixed gobos + open & 6 x Rotating Gobo + Open

Effect : High speed shake effect

Strobe Effect : Mechanical shutter and adjustable speed strobe effect

Frost : Motorized

Dimmer : Mechanical dimmer

Animation Fire Effect Wheel

PRISM

Prism 1 : 4-face Rotating prism

Display : LCD Display

Physical

IP Rating : IP 20

Net Weight kg. : 32kg.

Dimension : 404mm x 306mm x 736mm

Cooling : Forced Air With Fan

Clamp : Omega Brackets 90 Degree Professional Clamp ‘’Optional‘’

Connectors : PowerCon + Signal : 3 pin & 5 Pin

Electrical

Main Powersupply : 100V-240V 50/60Hz

Input Power : 700W@230V

Power Factor : PF>0.90

MAIN FEATURES

Light Source

•Lamp: Osram 600W LED

•Color Temperature: 2800K - 5600K

•Life Expectancy: 30,000 hours



Optics

•Lens Diameter: 180 mm

•Spot Angle: 5° – 55°

•Focus: Motorized Focus

•Zoom: Motorized Zoom



Dimmer and Strobe

•Dimmer: 0-100% Electronic Dimmer

•Strobe: Variable speeds (Maximum 15 FPS)



Color System

•Color Mixing: CMY Color System

•Color Wheel: CMY + CTO (2800K - 5600K)



Dynamic Effects

•Profile Spot: 4-blade cutting system with 180° rotatable patterns

•Fixed Gobos: 8 fixed gobos + open & 6 rotating gobos + open

•Effects: High-speed shake, mechanical strobe, animated fire effect wheel

•Frost: Motorized



Prism

•Prism: 4-facet rotating prism



Body

•Material: High-temperature resistant, UV-protected ABS and aluminum

•Color: Black

•Transport: Dual side handles

•Pan/Tilt Locking: Included



Movement

•Pan: 540°

•Tilt: 270°



Connections

•Protocols: DMX512, Built-in Program, DMX, Master/Slave

•Connectors: PowerCon, 3-pin and 5-pin DMX options



Physical

•Dimensions: 404 mm x 306 mm x 736 mm

•Weight: 32 kg

•Cooling: Fan-assisted air cooling

•IP Rating: IP20



Electrical

•Power Input: 100V-240V 50/60Hz

•Power Consumption: 700W@230V

•Power Factor: PF > 0.90



Application Areas

•Concerts: Delivers dynamic effects and powerful illumination, creating an unforgettable stage experience.

•Outdoor Events: Reliable performance in all weather conditions with its durable design.

•Theaters and Performance Venues: Enhances stage visuals with precise color transitions and stunning effects.

•Festivals and Large-Scale Events: Creates breathtaking lighting effects to captivate any audience.



The Elisium 700 sets a new standard in professional lighting with its cutting-edge technology, versatile design, and exceptional performance, making it an essential tool for any lighting application.

VERSIONS

REV 2023.05

CERTIFICATE

Certifications / Approvals : EMC , LVD , CE
