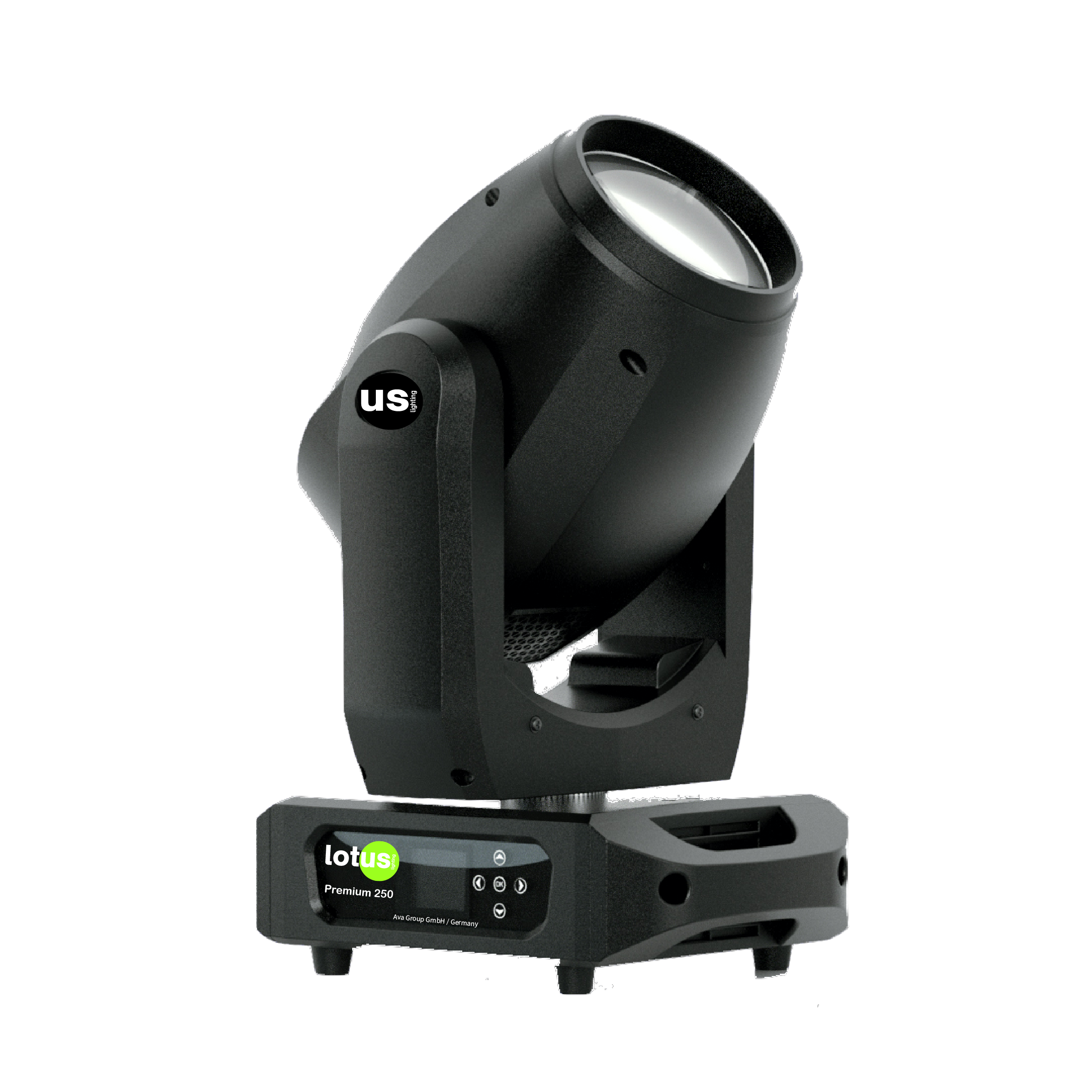

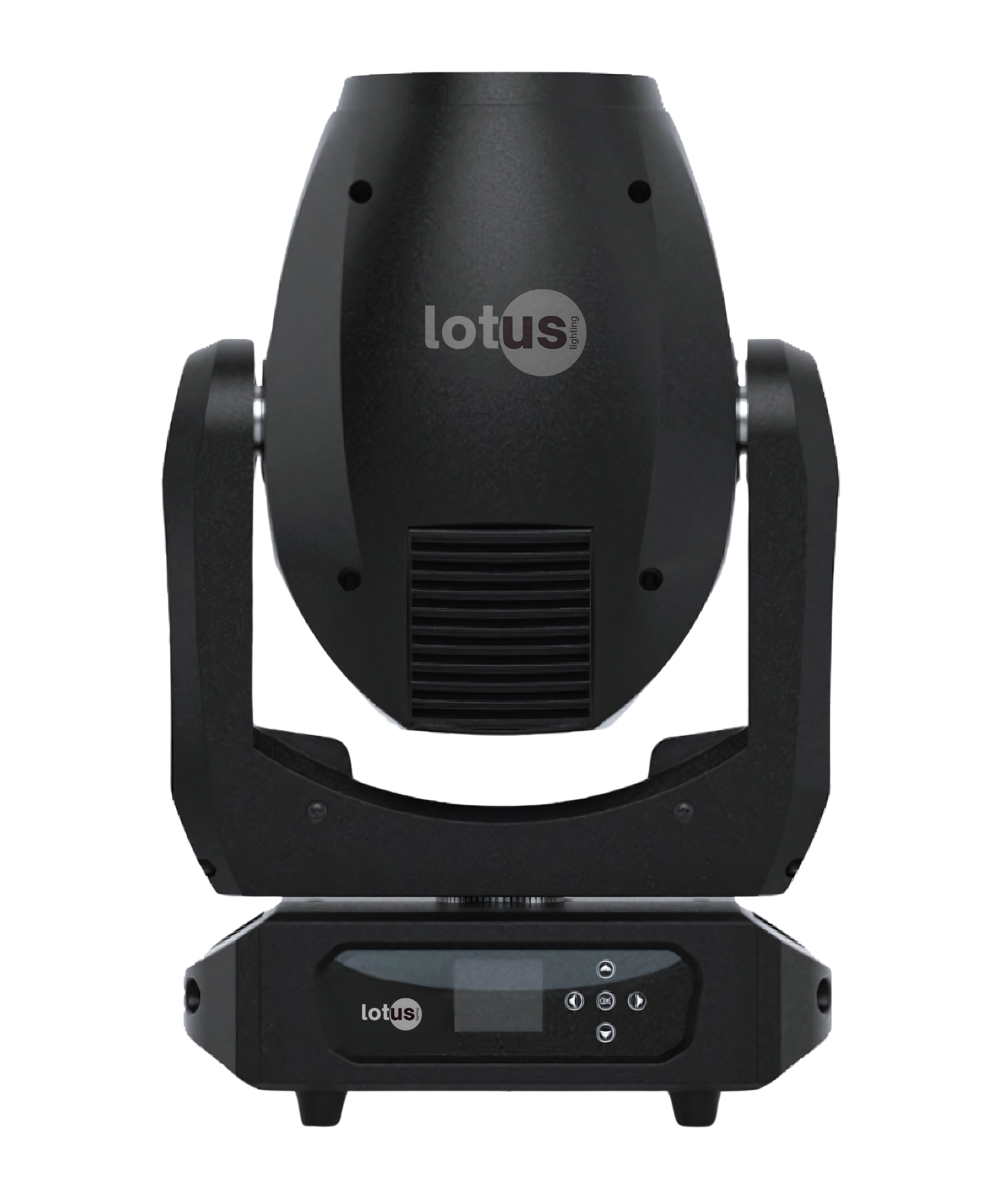

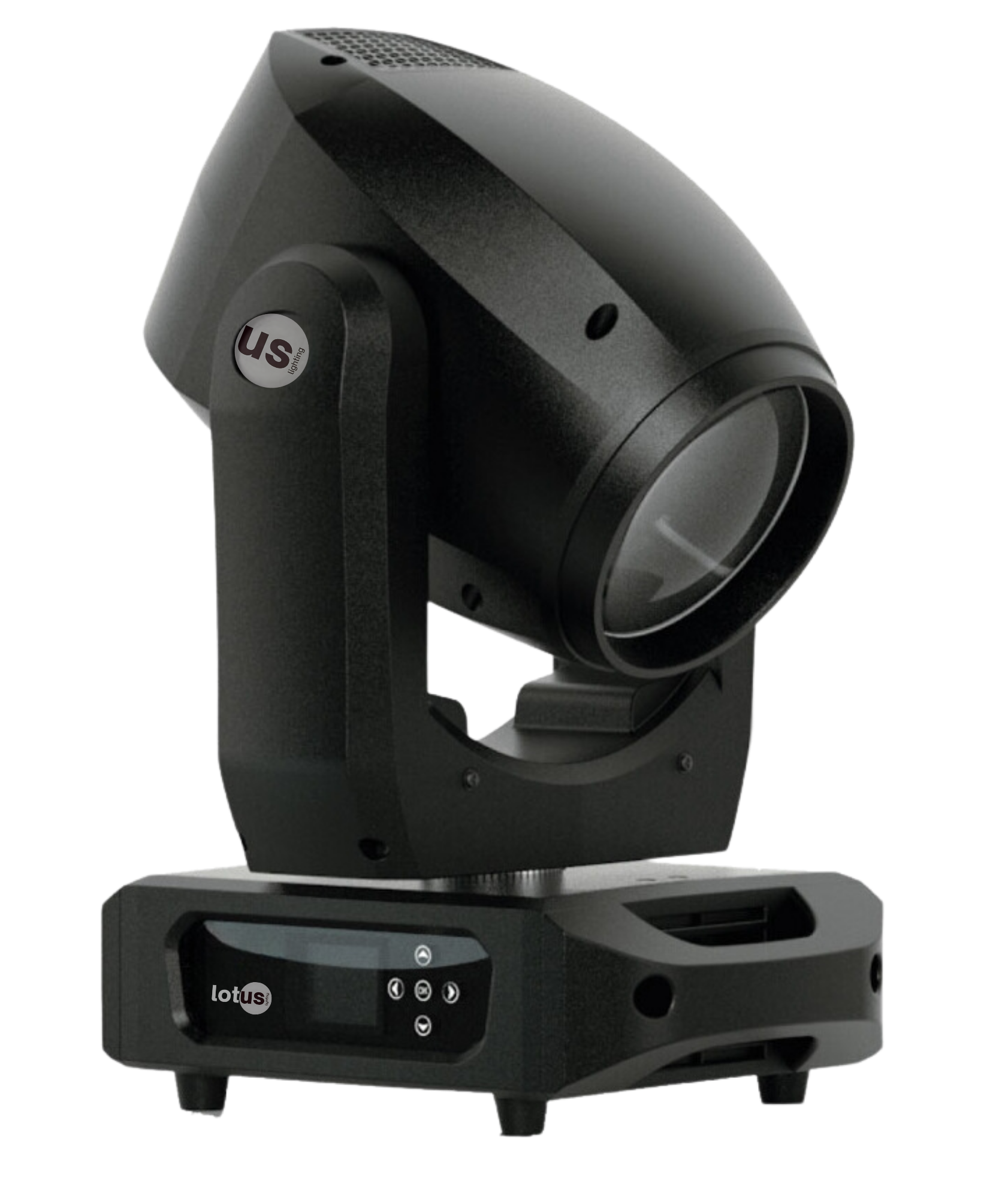

250W Movinghead Beam Stage Lighting

The Premium 250 Movinghead Beam is a powerful stage lighting solution equipped with a Panasonic 250 light source and high-speed motors. It delivers precise 2° beams and features 17 metal gobos and 2 prisms for creating impressive effects.

Its standout feature is the innovative color multiplier wheel, offering 14 colors plus white. This design enables quick and precise color transitions, split colors, and creative combinations. The flexible dichroic colors, without fixed positions, allow for instant customization and versatility.

With its combination of speed, precision, and rich color options, the Premium 250 Beam is the ideal choice for dynamic and captivating stage performances.

TECHNICAL SPECIFICATION

Light Source

Lamp: 250W 9R

Color Temperature: 7800K ± 200K

Source Life Expectancy: 3000 hours

Optics

Lens Diameter: 130mm

Adjustable Beam Angle: 0° ~ 2°

Focus: Motorized Focus

Color System

Colour Wheel: 14 color filters + White

Body

Material: High temperature and anti-UV ABS and aluminum

Body Color: Black

Transport: Two side handles

Device Locking PAN and TILT: Yes

Packing

Professional 90 Degree Clamp: Optional

Power Cable: Powercon with Cable

Signal: Male / Female Connector ‘’3 pin & 5 Pin’’

Control

Protocols: DMX512, Built-in Program, DMX, Master-Slave

Short Mode: 13 Channels

Standard Mode: 16 Channels

Display: LCD Display

Dimmer: 0-100% Electronic Dimmer

Strobe: Variable speeds (15 F.P.S at maximum)

Dynamic Effects

Fixed Gobo: 13 fixed gobos + open

Effect: High-speed shake effect

Strobe Effect: Mechanical shutter and adjustable speed strobe effect

Frost: Motorized

Dimmer: Mechanical dimmer

PRISM

Prism 1: 8-face prism

Prism 2: 16-face prism

Prism Effect 1: Double Prism

Light Output Beam Mode

10m: 170,000 Lux 2º

20m: 45,000 Lux 2º

Physical

IP Rating: IP 20

Net Weight: 10kg

Dimension: 287mm x 205mm x 457mm

Cooling: Forced Air with Fan

Clamp: Omega Brackets 90 Degree Professional Clamp (Optional)

Connectors: PowerCon + Signal: 3 pin or 5 pin

Electrical

Main Power Supply: 100V-240V 50/60Hz

Input Power: 450W @230V

Power Factor: PF > 0.90

MAIN FEATURES

Premium 250 – Powerful and Versatile Lighting Solution

The Premium 250 is a moving head light designed for stage and event lighting, offering exceptional performance and durability. Featuring a 250W 9R lamp with a 3000-hour lifespan, it provides reliable and long-lasting lighting. With a beam angle of 0°-2° and motorized focus, it ensures high precision in light direction. Thanks to its compact and powerful design, it is an indispensable choice for small stages, making it ideal for various events.

Superior Optics and Color System Performance

The Premium 250 offers a wide color palette with a color wheel featuring 14 filters, including white. Its adjustable beam angle and motorized focus system enable effortless customization of desired lighting effects. Dynamic strobe and frost effects allow for enhanced creativity on stage.

Durable Design and User-Friendly Details

Constructed from high-temperature-resistant and UV-protected ABS material, the Premium 250 is built to withstand challenging conditions while ensuring long-lasting use. Its sleek black body suits any event aesthetic, and the side handles with PAN/TILT locking mechanism simplify transportation and installation. Despite its compact size, it delivers powerful performance, making it perfect for small stages and indoor spaces.

Control and Ease of Use

Compatible with the DMX512 protocol, the Premium 250 allows quick and easy DMX channel adjustments. Built-in programs, DMX control, and Master-Slave mode offer flexible options for both professionals and amateurs. Its LCD display simplifies on-device settings and adjustments.

Dynamic Lighting Effects and Prisms

With 13 fixed gobos and an open gobo option, the Premium 250 creates stunning visual effects. Its 8-facet and 16-facet prisms provide versatile light-shaping capabilities. The motorized frost and mechanical dimmer ensure smooth or sharp transitions, ideal for stage performances.

Technical Reliability and High Performance

The Premium 250 operates within a power range of 450W and 100V-240V at 50/60Hz, ensuring stable performance under various conditions. Omega brackets and professional mounting accessories provide secure installation. Its robust cooling system and durable construction deliver reliable high performance, even during extended use.

Applications

The Premium 250 stands out with its versatility and exceptional performance, offering a wide range of applications:

Concerts: Delivers powerful lighting and dynamic effects for an impressive stage atmosphere.

Theaters and Performance Venues: Adjustable colors and lighting effects enhance stage designs.

Event Spaces: Ideal for weddings, conferences, festivals, and other large-scale events.

Rental Industry: Its durable design makes it suitable for frequent and intensive use.

Small Stages and Indoor Venues: Thanks to its compact and powerful design, it’s the perfect solution for confined spaces.

The Premium 250 adapts to any challenging environment, delivering a seamless and visually stunning lighting experience both technically and aesthetically

VERSIONS

REV 2023.05

CERTIFICATE

Certifications / Approvals : EMC , LVD , CE
