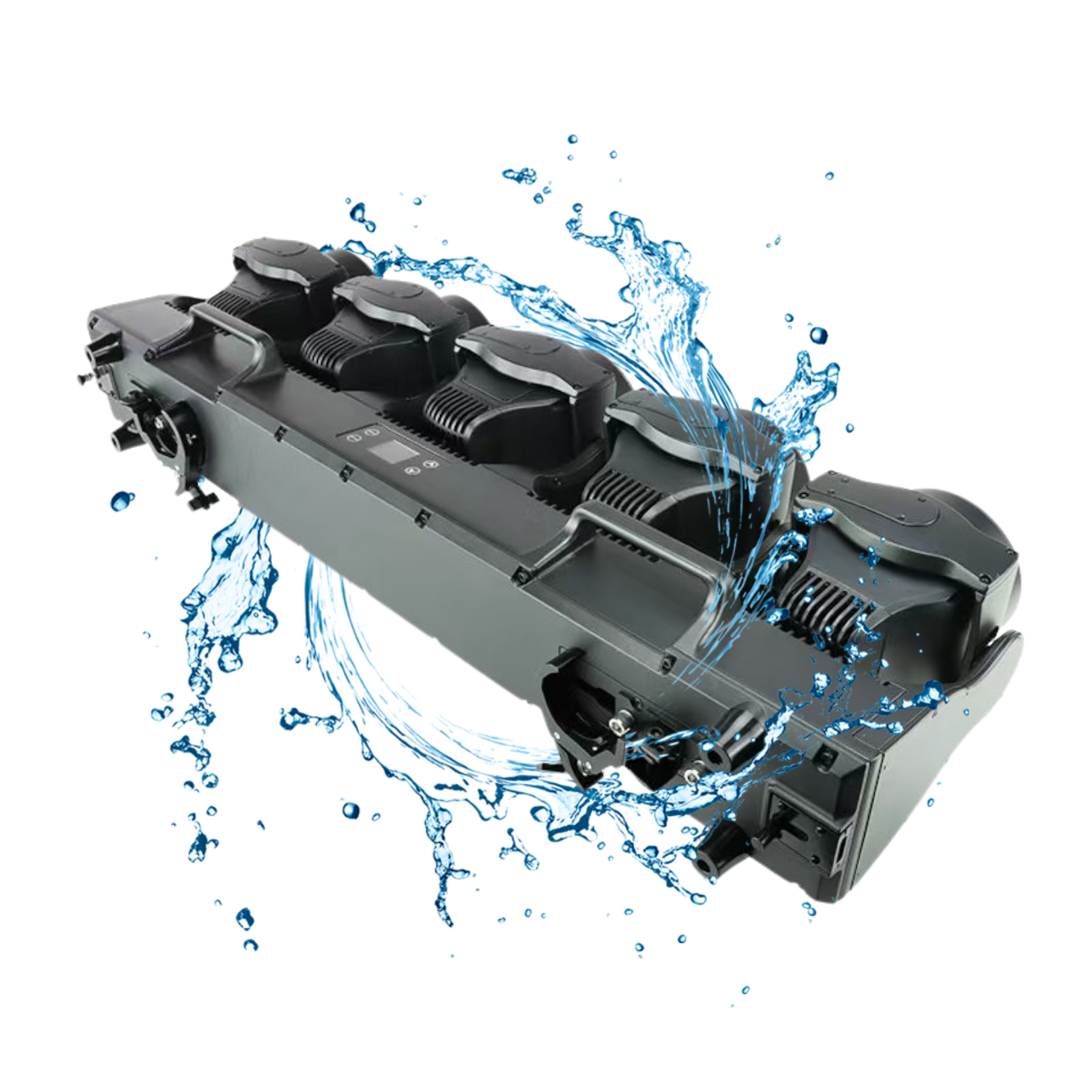

Scorpion 5 Aqua

WPBakery Elementor

Outdoor IP65 5x150W + Pixel Effect

The Lotus Light Scorpion 5 AQUA is a versatile bar light designed for beams, washes, and strobes, making it ideal for any production. It features 5x150W RGBW LEDs in the main section and 120×0.5W RGBW LEDs.

With eight DMX modes, preprogrammed effects, and a motorized zoom (beam angle: 3.9°-25.1°, field angle: 4.7°-29.8°), it ensures precise and dynamic lighting. Its motorized tilt range of 221° adds additional flexibility.

The Scorpion 5 AQUA can be mounted in any orientation, offers tool-less connection options, and has retractable feet for floor use. Compact and lightweight at 26.3 kg and 1 meter in length, it redefines what a bar light can achieve.

TECHNICAL SPECIFICATION

Light Source

  • Wash Light Source: 5 x Osram RGBW 150W LED

  • Pixel Light Source: 120 x 0.5W RGBW

  • Source Life Expectancy: 30,000 hours

Optics

  • Zoom: 3.9° - 29.80° motorised linear zoom

  • Lens Type: Honeycomb gapless plano-convex optics

Color System

  • Colour Mixing: RGBW 150W

  • Beam Mode: 5 pcs LED pixel control

  • Strobe Mode: Can use Strobe Light

  • Color Temperature: 8-class color temperature from 2700K - 8000K

Dimmer / Strobe

  • Dimmer: 0-100% Electronic Dimmer

  • Strobe Speed: Strobe at variable speeds (15 F.P.S at maximum)

  • Dimmer Curves: 4 selectable dimming modes available

  • Strobe / Shutter: 1-30 Hz, electronic

Dynamic Effects

  • Color: Colour mixing mode RGBW

  • Control Features: Pixel Control & Back Strobe

  • Mixing Effect: Outstanding mixing color effect

  • Strobe Effect: Outstanding strobe effect with variable speed

Wash Light Output Beam Mode

  • 5 mt.: 25,500 Lux @ 3.9°

Body

  • Material: Aluminum Housing

  • Body Color: Black

  • Transport: Bottom two side handles

Head Movement

  • Pan: 59°

  • Tilt: 221°

Physical

  • IP Rating: Waterproof Outdoor IP65

  • Net Weight: 26.3 kg

  • Dimension: 1019mm x 206mm x 356mm

  • Cooling: Forced Air With Fan

  • Clamp: Omega Brackets 90 Degree Professional Clamp (Optional)

  • Connectors: Truecon + Signal: 5 Pin + Art-Net Optional

Electrical

  • Main Power Supply: 100V-240V 50/60Hz

  • Input Power: 1100W @ 230V

  • Power Factor: PF > 0.90

Control

  • Protocols: RDM, DMX512, Built-in Program, DMX, Master Slave

  • Short Mode: 85 Channels

  • Standard Mode: 21, 41, 71, 75, 85, 170 Channels

  • Display: LCD Display

Packing & Accessories

  • Professional 90 Degree Clamp: Optional

  • Power Cable: Seetronic Truecon with Cable

  • Signal: Male/Female Connector 5 Pin + Art-Net Optional

MAIN FEATURES
  • Compact form factor and fast movements
  • Zoom from 3.9° to 29.80° with high optical efficiency
  • Precise white CCT and colour mixing
  • Tilt grants a full movement that keeps an infinity
  •
VERSIONS

REV 2026.07

CERTIFICATE

Certifications / Approvals: EMC, LVD, CE
