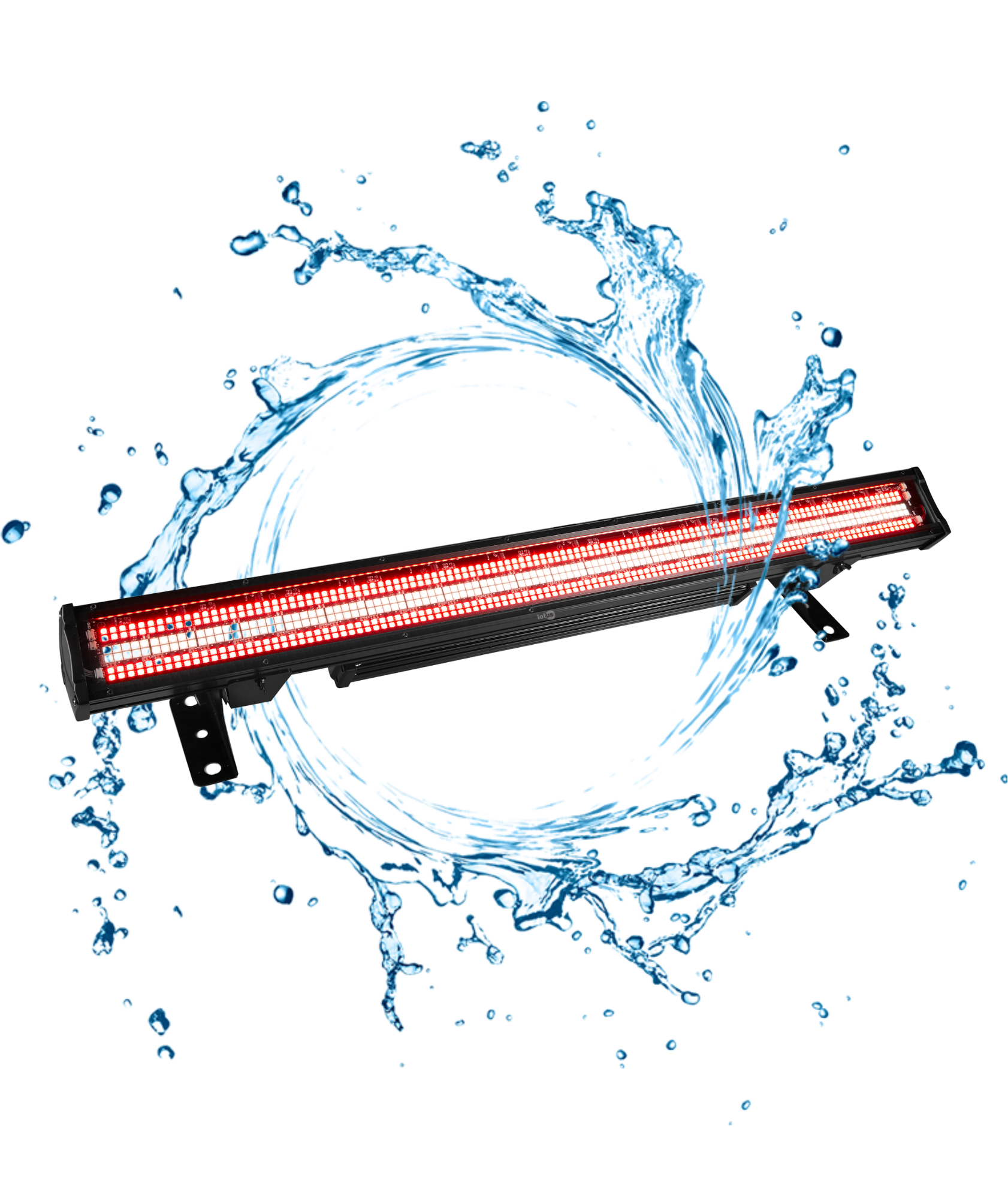

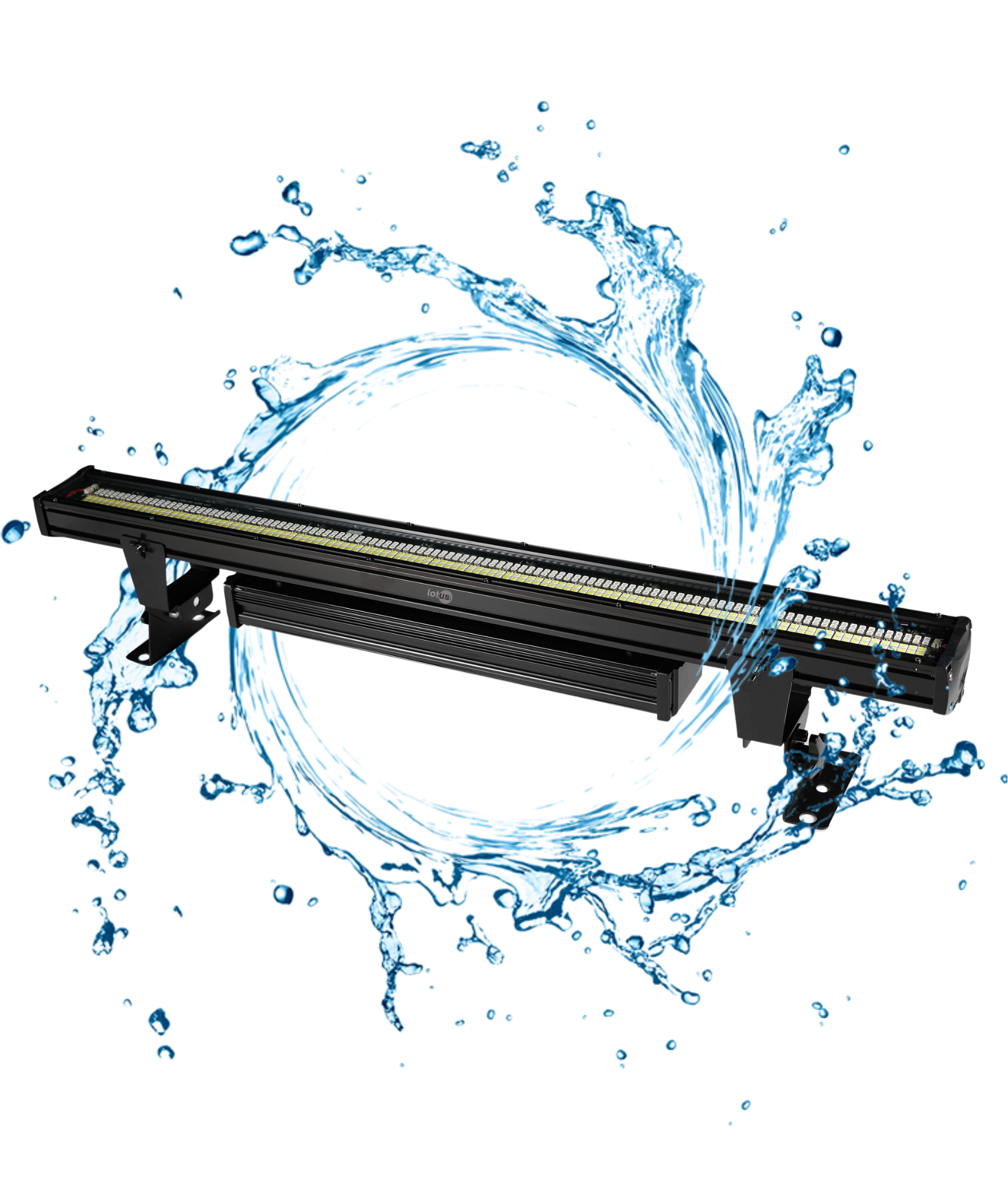

ST-100 Aqua-2

Led Strobe Cold White + Color

The ST-100 Aqua is a versatile and powerful lighting solution designed for both
large stages and various environments. With its Outdoor IP65 rating, it ensures
durability and reliability even in challenging weather conditions. Featuring
Color + White Strobe functionality, it delivers dynamic strobe and wash effects,
perfect for creating vibrant lighting displays and stunning color washes.
The ST-100 Aqua excels in effect and painting applications, making it an ideal
choice for creating impressive visuals in any setting. While it also delivers
excellent results in face lighting. Whether for professional setups or camera
shots, the ST-100 Aqua performs beautifully.
Thanks to its RDM capability, you can control channels directly from the
lighting desk, allowing seamless integration into your lighting control system.
Additionally, it offers the flexibility to create stunning effects such as 32+16
sections of horse racing, dyeing, and explosive flashing effects, providing
endless creative possibilities.

TECHNICAL SPECIFICATION

Light Source
Led : 672 Pcs SMD 5050 0,5W 3 in 1 RGB Effect Pixel Control ‘ 149° ‘
Led : 112Pcs SMD 3030 3W Cold White ‘ 152° ‘
Source life expectancy : 30.000 hours

Color System
Colour mixing: RGBW / FC
Colour wheel: virtual colour wheel with macros
Cold White & Color Strobe

Body
Material : Plastic and aluminum
Body Color : Black
Transport : Handle
Head Movement
Tilt : 185º
Pan/Tilt Resolution: 16 Bit

Packing
Professional 90 Degree Clamp : Optional
Power Cable : TrueCon with Cable
Signal : Male / Female Connector ‘’ 3 pin & 5 Pin Optional ‘Art-Net’

Control
Protocols : RDM DMX512 ‘’ Built-in Program, DMX, Master Slave
Short Mode : 20 Channels
Standart Mode : 06/14/16/20/38/112/16/32/64/67/116/169 Ch
Display : LCD Display

Dimmer / Strobe
Dimmer : 0-100% Electronic Dimmer
Strobe at variable speeds (15 F.P.S at maximum)

Dynamic Effects
Color : Colour mixing mode RGBW
Control Resolution: 32-Bit dimmer
Segment Control
Flash + Dyeing + effect + Shaking Head

Physical
IP Rating : IP 65
Net Weight kg. : 7kg.
Dimension : 983mm x 90mm x h:126mm
Cooling : Forced Air With Fan
Clamp : Omega Brackets 90 Degree Professional Clamp ‘’Optional‘’
Connectors : Truecon + Signal : 3 pin & 5 Pin

Electrical
Main Powersupply : 100V-240V 50/60Hz
Input Power : 450W@230V
Power Factor : PF>0.90

MAIN FEATURES

Led : 672 Pcs SMD 5050 3 in 1 RGB Effect Pixel Control
Led : 112Pcs SMD 3030 Cold White
Whether for live events, stage performances, or creative installations, the
ST-100 Aqua is the perfect tool to achieve remarkable lighting effects.

VERSIONS

REV 2025.01

CERTIFICATE

Certifications / Approvals : EMC , LVD , CE
