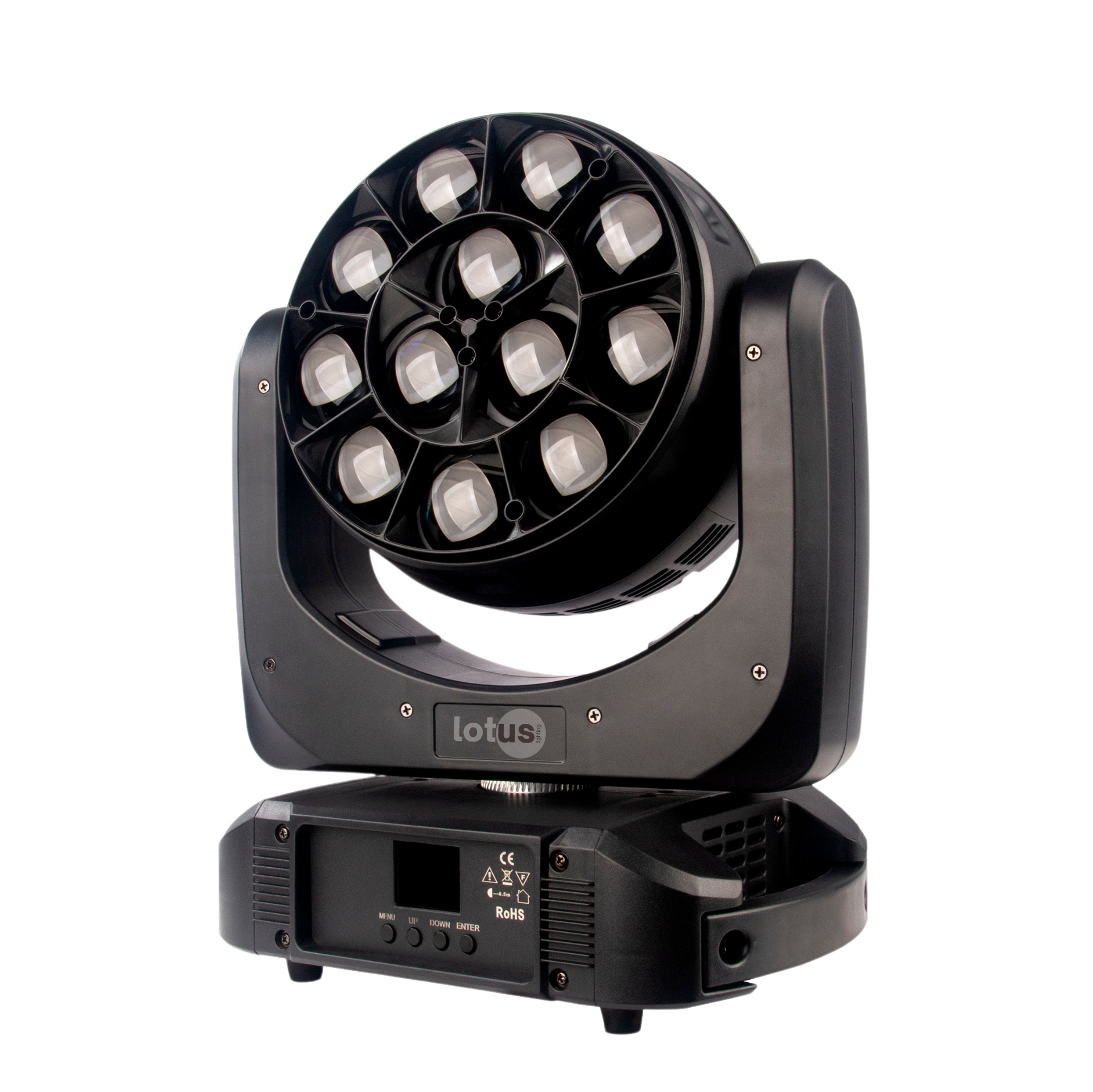

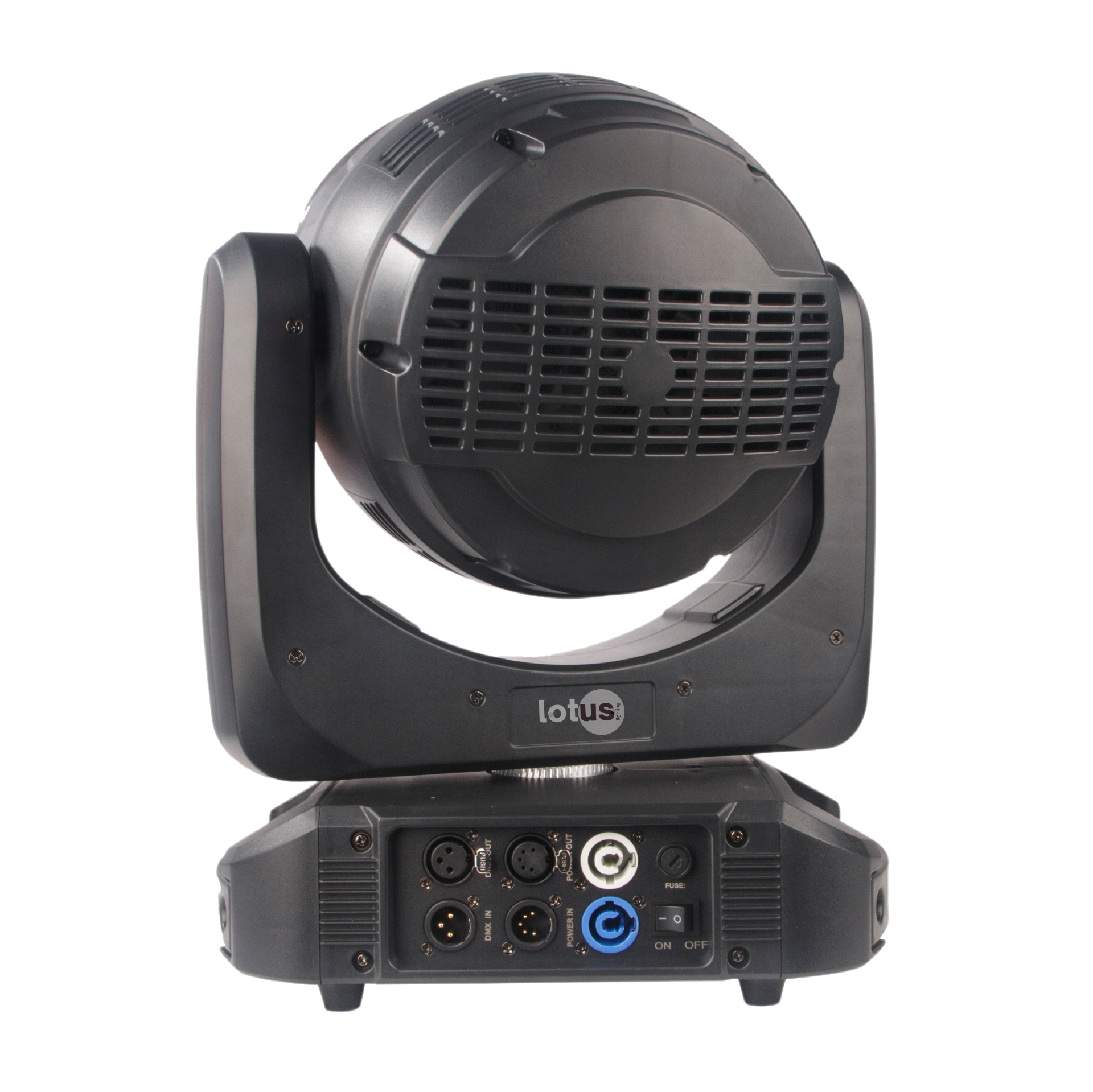

Titan 650 ‘’ B-Eye ‘’

WPBakery Elementor

12x40W Led Wash with Zoom B-Eye Movinghead

The Titan 650 is a compact and fast LED moving wash light that combines sleek
design with high performance. Equipped with motorized zoom control, this
fixture delivers a flawless lighting experience in any stage or event setting.
The powerful 40W Osram RGBW LED source offers impressive output, and
when paired with its highly efficient optical system, capable of zooming from
3.5° to 45°, it effortlessly transitions between a narrow beam and a wide wash
light.
The Titan 650 features an advanced color mixing system that delivers rich,
vibrant hues and crystal-clear white tones. Similar to other models in the series,
it offers a user-friendly and intuitive interface, making it easy and enjoyable to
operate for both professional and amateur users alike.
Ideal for those looking to push the boundaries of stage lighting and bring
creative lighting designs to life, the Titan 650 is the perfect solution.

TECHNICAL SPECIFICATION

Light Source

Lamp: Multichip 800W Led

Color Temperature: 2800K-5600K

Source life expectancy: 30,000 hours

Optics

Lens Diameter: 180mm

Spot: 5°～ 55°

Focus: Motorized Focus

Zoom: Motorized Zoom

Color System

Colour mixing: CMY colour system on 7 Color

Colour wheel: CMY + CTO ‘’ 2800K-5600K ‘’

Body

Material: High temperature and anti-UV ABS and aluminum

Body Color: Black

Transport: Two side handles

Device Locking PAN and TILT: Yes

Head Movement

Pan: 540º

Tilt: 270º

Pan/Tilt Resolution:

Packing

Professional 90 Degree Clamp: Including

Power Cable: TrueCon with Cable

Signal: Male / Female Connector ‘’ 3 pin & 5 Pin ‘’

Control

Protocols: DMX512 ‘’ Built-in Program, DMX, Master Slave ‘’

Short Mode: 37 Channels

Standard Mode: 41 Channels

Display: LCD Display

Dimmer / Strobe

Dimmer: 0-100% Electronic Dimmer

Strobe: Variable speeds (15 F.P.S at maximum)

Dynamic Effects

Profile Spot: Yes ‘’ 4 Plates. After cut, the pattern can rotate 180°

Fixed Gobo: 8 fixed gobos + open & 6 x Rotating Gobo + Open

Effect: High speed shake effect

Strobe Effect: Mechanical shutter and adjustable speed strobe effect

Frost: Motorized

Dimmer: Mechanical dimmer

Animation: Fire Effect Wheel

Prism

Prism 1: 4-face Rotating prism

MAIN FEATURES

Lght Source
Lamp : 12x40W Multi Led Chip
Source life expectancy : 30.000 hours
Optcs
Zoom: 3,5° - 45° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
Color System
Colour mixing: RGBW / FC / B-Eye Effect
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros

Body
Material : High temperature and anti-UV ABS and aluminum
Body Color : Black
Transport : Two side handles
Device Locking PAN and TILT : Yes
Head Movement
Pan : 540º
Tilt : 270º
Pan/Tilt Resolution:

Packng
Professional 90 Degree Clamp : Optional
Power Cable : Powercon with Cable
Signal : Male / Female Connector ‘’ 3 pin & 5 Pin

Control
Protocols : DMX512 ‘’ Built-in Program, DMX, Master Slave ‘’
Short Mode : 16 Channels
Standart Mode : 21/25/33/81 Channels
Display : LCD Display

Dmmer / Strobe
Dimmer : 0-100% Electronic Dimmer
Strobe at variable speeds (15 F.P.S at maximum)

Dynamc Effects
Color : Colour mixing mode RGBW
Control Resolution: 16-bit dimmer
Pixel Control
B-Eye Effect

Lght Output Beam Mode
5 mt. : 28.000 Lux 3,5º
10 mt. : 12.600 Lux 3,5º
20 mt. : 5.500 Lux 3,5º

Physcal
IP Rating : IP 20
Net Weight kg. : 9,5kg.
Dimension : 324mm x 240mm x 377mm
Cooling : Forced Air With Fan
Clamp : Omega Brackets 90 Degree Professional Clamp ‘’Optional‘’
Connectors : PowerCon + Signal : 3 pin & 5 Pin

Electrcal
Main Powersupply : 100V-240V 50/60Hz
Input Power : 500W@230V
Power Factor : PF>0.90

VERSIONS

REV 2023.05

CERTIFICATE

Certifications / Approvals : EMC , LVD , CE
