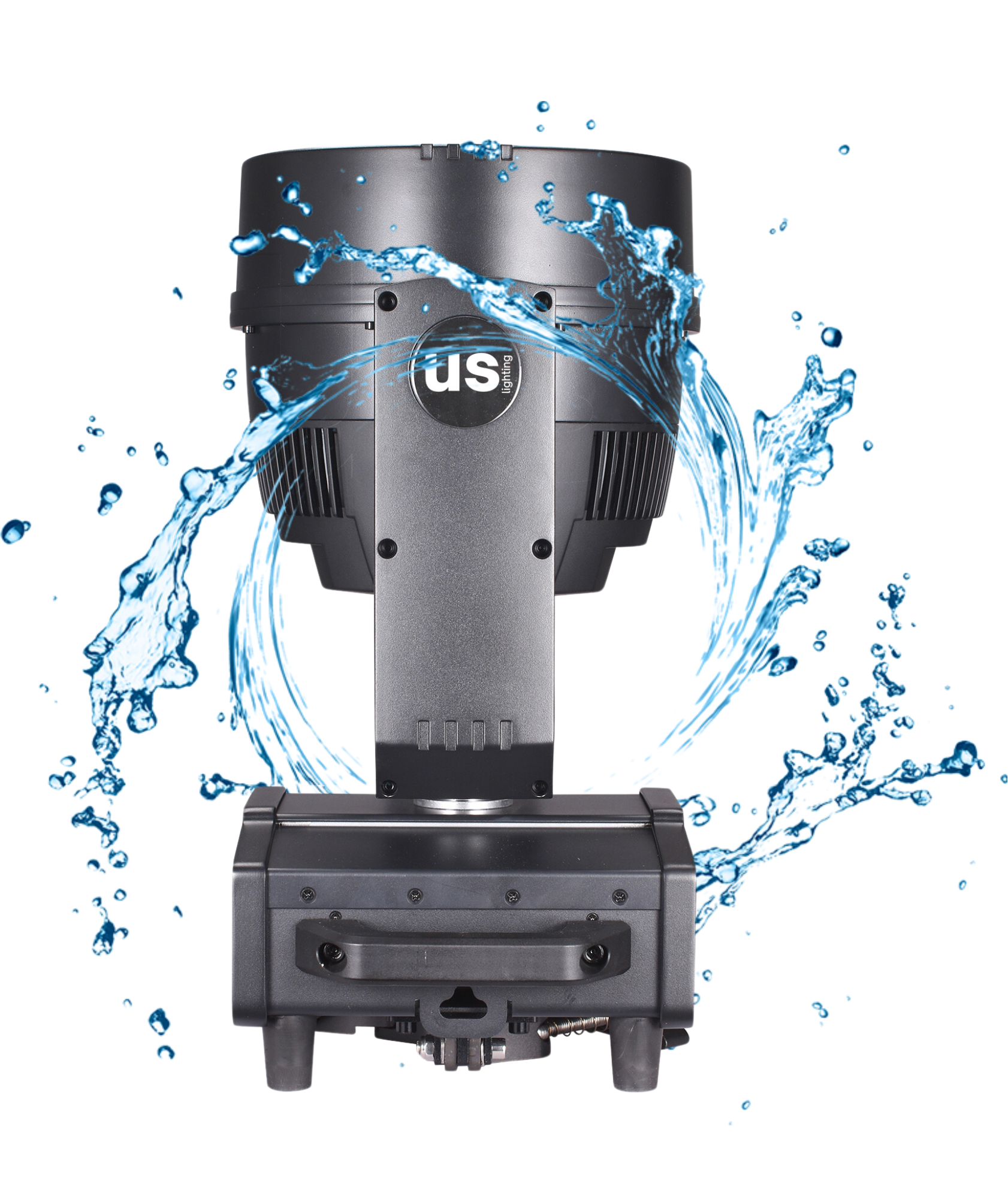

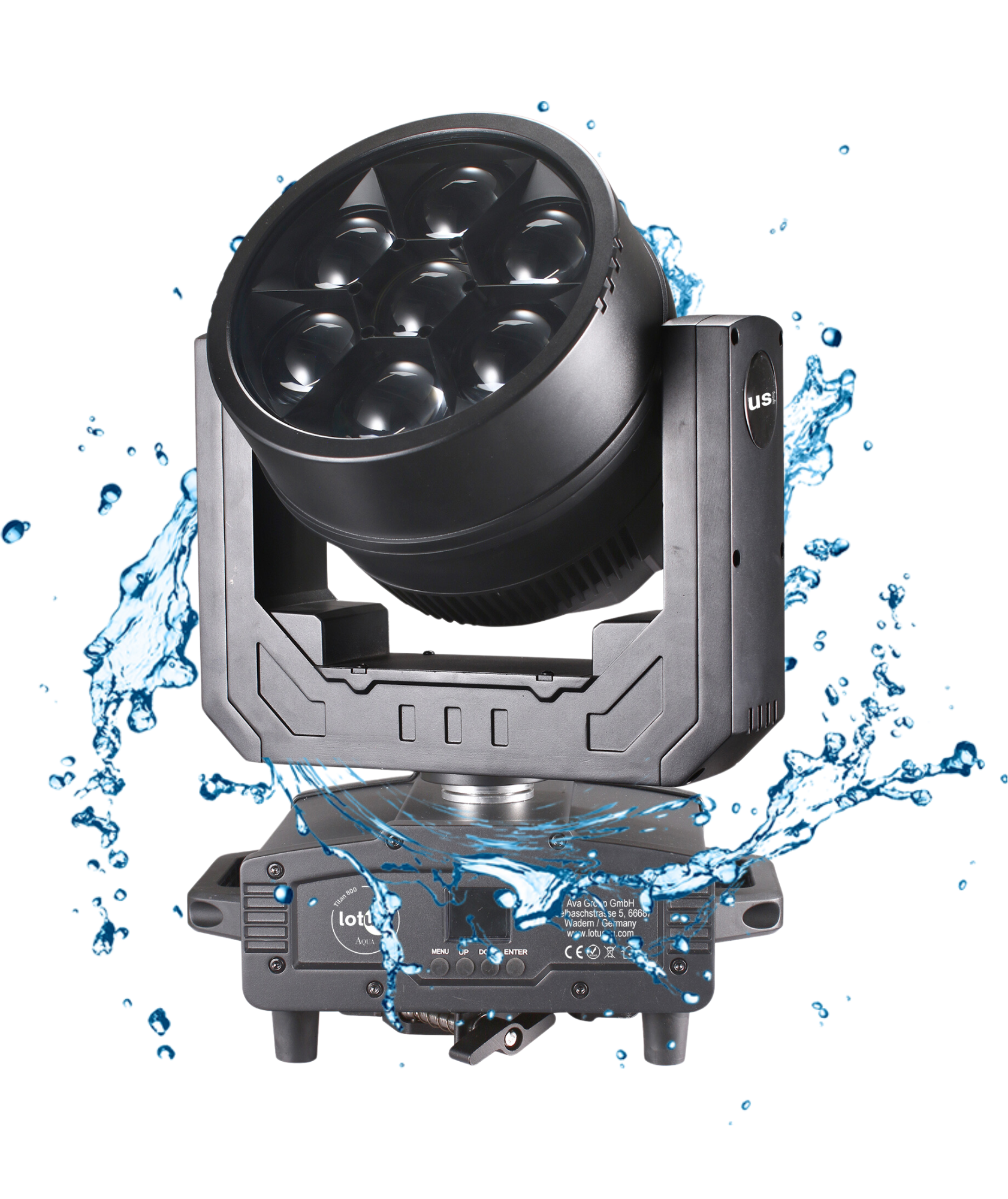

7x60W B-Eye Outdoor IP65 Led Wash
The Lotus Titan 800 redefines lighting performance with its superior
design and innovative features. Equipped with 7x60W RGBW LED technology,
the Titan 800 delivers impressive brightness, vibrant colors, and flawless
effects, making it an ideal solution for both indoor and outdoor environments.
At its core lies a custom optical system that enhances light uniformity
and maximizes output efficiency, ensuring perfect illumination for stages and
events. Its IP66-certified durable construction guarantees reliable operation
even in harsh weather conditions, making it a perfect choice for both temporary
and permanent installations.
The rotating front lens and individual LED control unlock a variety of dynamic
effects, including mesmerizing kaleidoscopic projections and unique patterns.
This advanced system combines powerful wash lighting, sharp beams, and
captivating visual effects in a single fixture, offering creative versatility.
TECHNICAL SPECIFICATION
Light Source
Lamp : 7x60W RGBW Osram Led Chip
Source life expectancy : 30.000 hours
Optics
Zoom: 3,5° - 45° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
Color System
Colour mixing: RGBW / FC / CTO
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Body
Material : High temperature and anti-UV ABS and aluminum
Body Color : Black
Transport : Two side handles
Device Locking PAN and TILT : Yes
Head Movement
Pan : 540º
Tilt : 270º + infinity
Pan/Tilt Resolution: 8 Bit / 16 Bit
Packing
Professional 90 Degree Clamp : Optional
Power Cable : Powercon with Cable
Signal : Male / Female Connector ‘’ 5 Pin
Control
Protocols : DMX512 ‘’ Built-in Program, DMX, Master Slave ‘’
Short Mode : 21 Channels
Standart Mode : 21/23/35/42/49/51/56Channels
Display : LCD Display
Dimmer / Strobe
Dimmer : 0-100% Electronic Dimmer
Strobe at variable speeds (15 F.P.S at maximum)
Electrical
Main Powersupply : 100V-240V 50/60Hz
Input Power : 500W@230V
Power Factor : PF>0.90
Dynamic Effects
Color : Colour mixing mode RGBW
Control Resolution: 16-bit dimmer
CTO
Light Output Beam Mode
5 mt. : 35.000 Lux 3,5º
8 mt. : 13.400 Lux 3,5º
MAIN FEATURES
Compact form factor and fast movements
Zoom from 3,5° to 45° with high optical efficiency
Precise white CCT and colour mixing
CTO
VERSIONS
REV 2024.08
CERTIFICATE
Certifications / Approvals : EMC , LVD , CE
